TG200 – 716 series

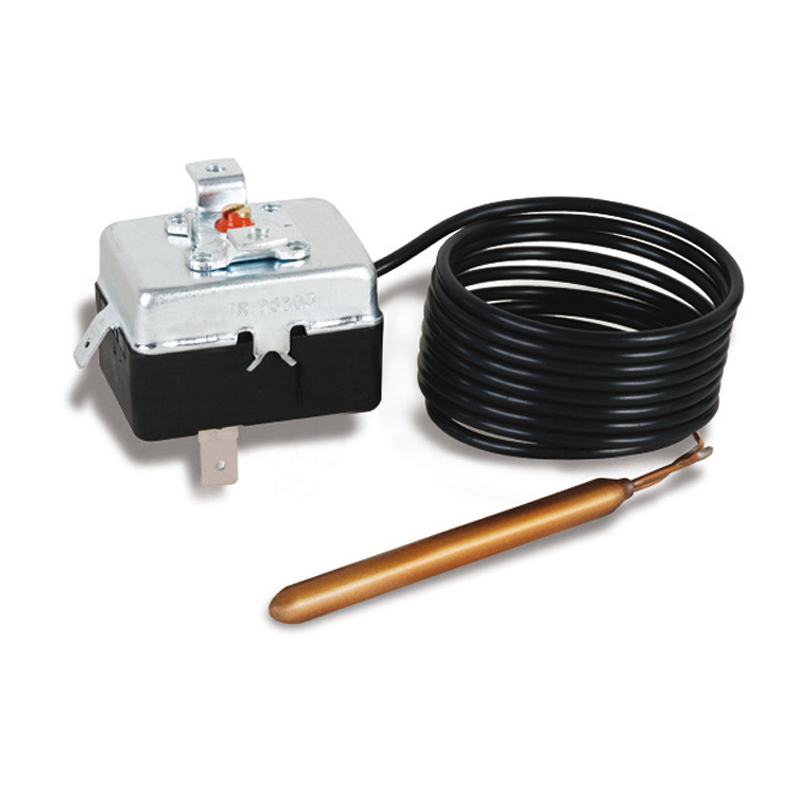

Control thermostat, fixed calibration

•
•

TG200 – 716 series FOR MORE INFO

•

• DESCRIPTION
• TECHNICAL SPECIFICATION
• TECHNICAL LITERATURE

• DESCRIPTION
  0

  Control thermostat, fixed calibration

  General features

  • Gas filled sensing element versions available on request.
  • Gold-plated contact versions available on request.
  • Compliance with CE standard 0497 (PED)

  Electric features

  • Contact rating 16(4)A 250Vca, 6(1)A 400Vca.
• ADVANTAGES
  0

  Control thermostat, fixed calibration

  Advantages
• TECHNICAL SPECIFICATION

  CODE	ADJUSTMENT RANGE/ CALIBRATION	CONTACTS	BULB dimensions mm	BULB material	CAPILLARY mm	CAPILLARY material	PACK QTY
  716-90328-00A *	90 °C	SPDT	Ø 6.5 x 73	Cu	1000	Cu + PVC	50
  716-90338-00A *	90 °C	SPDT	Ø 6.5 x 73	Cu	1500	Cu + PVC	50
  716-99338-00A *	100 °C	SPDT	Ø 6.5 x 73	Cu	1500	Cu + PVC	50
  * delivery time and minimum purchase quantity upon request

• HOMOLOGATION AND INSTALLATION
  Homologation

  Installation and use
• TECHNICAL LITERATURE
  • TUV certificate
  • Conformity EU declaration
• FAQS
