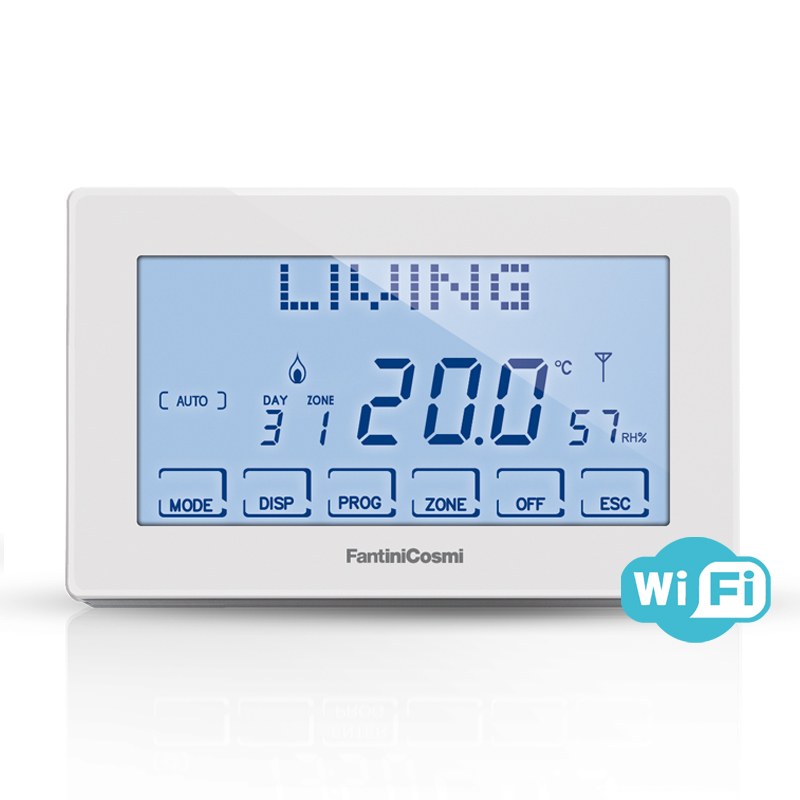

Weekly wireless touchscreen programmable thermostat with WIFI connection for remote control. For Intellicomfort+ system
- DESCRIPTION
- ADVANTAGES
- TECHNICAL SPECIFICATION
- HOMOLOGATION AND INSTALLATION
- TECHNICAL LITERATURE
- FAQS
-
DESCRIPTION
General features0
Wireless touchscreen programmable thermostat with weekly program and WIFI connection for remote control
Supervisor for Intellicomfort+ wireless multi-zone system
To control the heating, cooling and humidity system
WiFi connection for remote control through APP Intelliclima+ for Smartphone and Tablet.
- Temperature regulation scale 2 ÷ 40 °C, increment 0.1°C.
- Measurement scale/room T display 30 ÷ 70%, increment 1%.
- Measurement scale/room T display – 50 ÷ + 50 °C.
- Relative humidity adjustment range 0÷100%.
- Differential 0.3 ÷ 5 K.
- Thermal gradient 4 K/h.
- Maximum room temperature 45°C.
- WiFi connection 2,4 GHz.
- Radio frequency 868Mhz.
- Maximum radio frequency power transmitted < 10mW.
- Managements general heating, cooling and humidity control.
- Managements zone heating, cooling and humidity control.
- Managements maximum 8 control zone.
- Managements maximum management of 15 devices directly connected to the CH180RFWIFI.
- Managements maximum management of 114 devices directly connected to network.
- Managements alarm management to exceed minimum and maximum temperature.
- Managements system lock management to overcome the minimum and maximum temperature threshold.
- Managements cooling management by activating the dehumidifier through dew point control or via a predetermined UR% threshold.
- Managements remote change over (only with APP).
- Managements auxiliary ON / OFF control for electric users (only with CH175).
- Viewing of energy consumption and system fault anomalies.
- Correction of the offset of the temperature read.
- Possibility to associate the names to all the zones.
- Storage temperature -10°C ÷ +60°C.
- Protection degree IP40.
- Display: Italian, English, French, Spanish, German, Russian.
- Screen lock of CH180RFWIFI and the connected CH120RFs with password and for display cleaning.
Download the Intelliclima+ APP
Electric features- Power supply 230V-50Hz
- Maximum absorbed power 5 W
- Contacts rating 5(3)A 250 Vca
- Type of action 1 B.U. (connection micro-switch)
- Output type 1 relay for heating/cooling or humidity systems (3 screw clamps (closed + open)
- Software A class
- Electric insulation: double insulation
- Pulse voltage 4000V
-
ADVANTAGES
0
Wireless touchscreen programmable thermostat with weekly program and WIFI connection for remote control
Supervisor for Intellicomfort+ wireless multi-zone system
To control the heating, cooling and humidity system
WiFi connection for remote control through APP Intelliclima+ for Smartphone and Tablet.
Advantages- EVERY ROOM HAS THE RIGHT TEMPERATURE AND HUMIDITY
With Intellicomfort + you can adjust the room temperature and humidity differently, in every single room in your flat or office.
- EVERY ROOM HAS THE RIGHT TEMPERATURE AND HUMIDITY
-
TECHNICAL SPECIFICATION
CODE TEMPERATURE REGULATION RANGE ADJUSTABLE DIFFERENTIAL HUMIDITY REGULATION RANGE POWER SUPPLY CONTACTS RATING CH180RFWIFI 2 ÷ 40 °C, increment 0.1°C 0.3 ÷ 5 K 30 ÷ 70%, increment 1% 230V 50Hz 5(3)A 250 Vca -
HOMOLOGATION AND INSTALLATION
Homologation
- Complies with EN 60730-1 standards;
- Responding to Directive 2014/53 / EU (RED).
- ErP Classification (Reg. EU 811/2013 – 813/2013):
– Class IV; 2%
– Class VIII; 5% when used with O60RF actuators to create three or more heating zones.
Installation and use- Look at the video instructions;
- CH180RFWIFI has to be installed on the wall or in a 3 modules or round flush mounting box, at about 1.5 meters above the floor.
- CH180RFWIFI “MASTER” programmable thermostat monitors the various zones in the home (up to 8), communicating with the CH120RF room thermostats and the O60RF wireless radiator actuators, or with the boiler actuators or CH175 zone solenoid valve. CH180RF uses a program that allows you to set the temperature, humidity and time profiles for each zone.
- It has the function of zone thermostat with the possibility of controlling the O60RF and CH175 actuators.
- It has a custom temperature, humidity and time profile program for each zone, which can be modified as needed.
- It is also possible to correct the offset of the read temperature from each zone (i.e if the zone is controlled by O60RF head placed in the wrong position)
- On the white positive backlight, LCD touch screen is possible view, through an intuitive graph, the energy consumption of the entire system.CH180RFWIFI has 6 touch-keys, which function depends on the situation and is described by the symbol that appears on the display.
- CH180WIFI programmable thermostat allows different modes of use, called programs:
– MAN Manual program
– AUTO Weekly program
– HOLIDAY Daily program
– JOLLY Temporary program
– OFF Switched off system or antifreeze program
Download the Intelliclima+ APP
-
TECHNICAL LITERATURE
- Brochure Intellicomfort+ EN
- CH180RFWIFI EN technical data sheet
- CH180RFWIFI EN-FR-ES-DE-RU quick start guide
- CH180RFWIFI EN instructions
- CH180RFWIFI ES hoja de instrucciones
- CH180RFWIFI FR feuille d'instructions
- CH180RFWIFI DE Gebrauchsanweisungen
- CH180RFWIFI RU instructions
- Brochure Intellicomfort+ RU
-
FAQS
-
What is the difference between a Wi-Fi and a GSM programmable thermostat?
Wi-Fi programmable thermostats allow remote communication through the “Intelliclima+” application that can be downloaded on Android/iOS smartphones/tablets using the Internet data network inside the area where the device will be placed.
GSM programmable thermostats are designed to accept a SIM card that transfers data in GSM mode. Communication will take place by sending common SMSs from your Android/iOS smartphone, using the remaining credit based on your data plan. It is possible to use the “Intelliclima+” application also with a GSM programmable thermostat, but an SMS will also be sent.
-
What is the difference between Comfort and Economy temperatures on thermostats/programmable thermostats?
T Comfort is a temperature value to be preset, according to your needs, for higher temperatures at specific times of the day; T Economy is a temperature value to be preset, according to your needs, to maintain temperatures lower than T Comfort at different times of the day or night, when heating is not really required.
-
