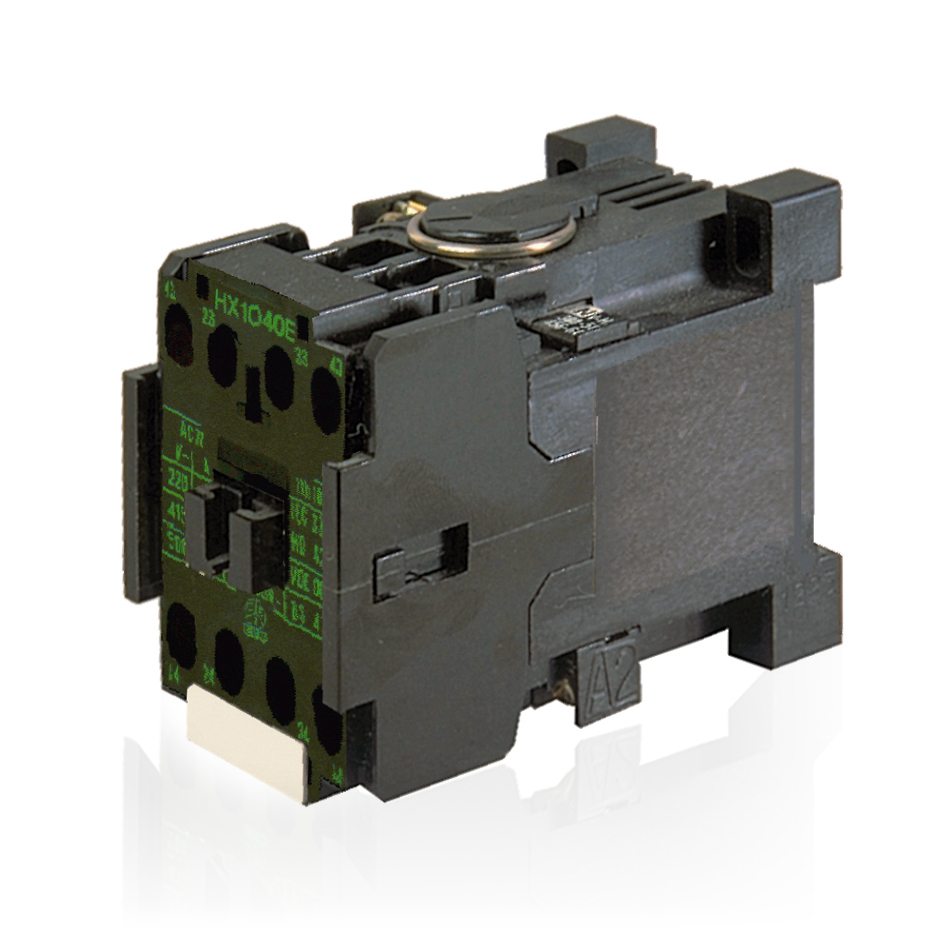

HX10 OUT OF PRODUCTION

AUXILIARY CONTACTORS

•
•

HX10 FOR MORE INFO

• DESCRIPTION
• HOMOLOGATION AND INSTALLATION
• TECHNICAL LITERATURE

• DESCRIPTION
  0

  • For circuits in which a large number of NO or NC contacts are required to satisfy the requirements of complex wiring diagrams.

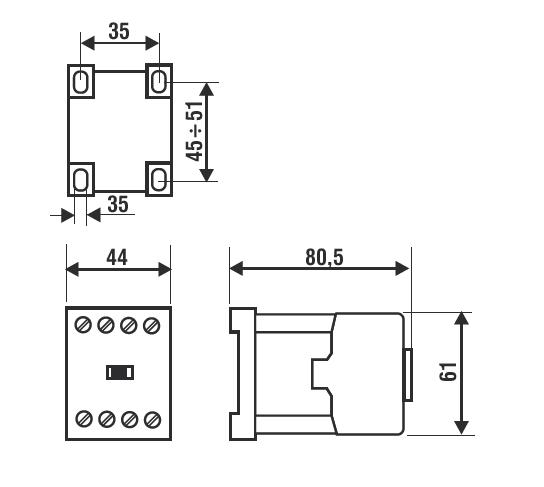

  • Screw mounting to EN 50003 or on 35 mm metal rail EN50022-3 DIN 46277-3
  • Mounting tilt not exceeding ± 30° in relation to the vertical
  • Ambient temperature from -5°C to 40°C
  • Altitude up to 2,000 metres
  • Relative humidity not exceeding 50% at 40°C

  General features
• ADVANTAGES
  0

  • For circuits in which a large number of NO or NC contacts are required to satisfy the requirements of complex wiring diagrams.
  • Screw mounting to EN 50003 or on 35 mm metal rail EN50022-3 DIN 46277-3
  • Mounting tilt not exceeding ± 30° in relation to the vertical
  • Ambient temperature from -5°C to 40°C
  • Altitude up to 2,000 metres
  • Relative humidity not exceeding 50% at 40°C

  Advantages
• TECHNICAL SPECIFICATION
• HOMOLOGATION AND INSTALLATION
  Homologation

  Compliance with recommendations and standards:

  • IEC 947-1, CEI EN 60947-1, CEI EN 60947-5-1, VDE 0660, BS 60947-5-1, UTE – NCF 63-110, NEMA NBN C63158, AS1029

  Installation and use
• TECHNICAL LITERATURE
  • HX10 EN technical data sheet
