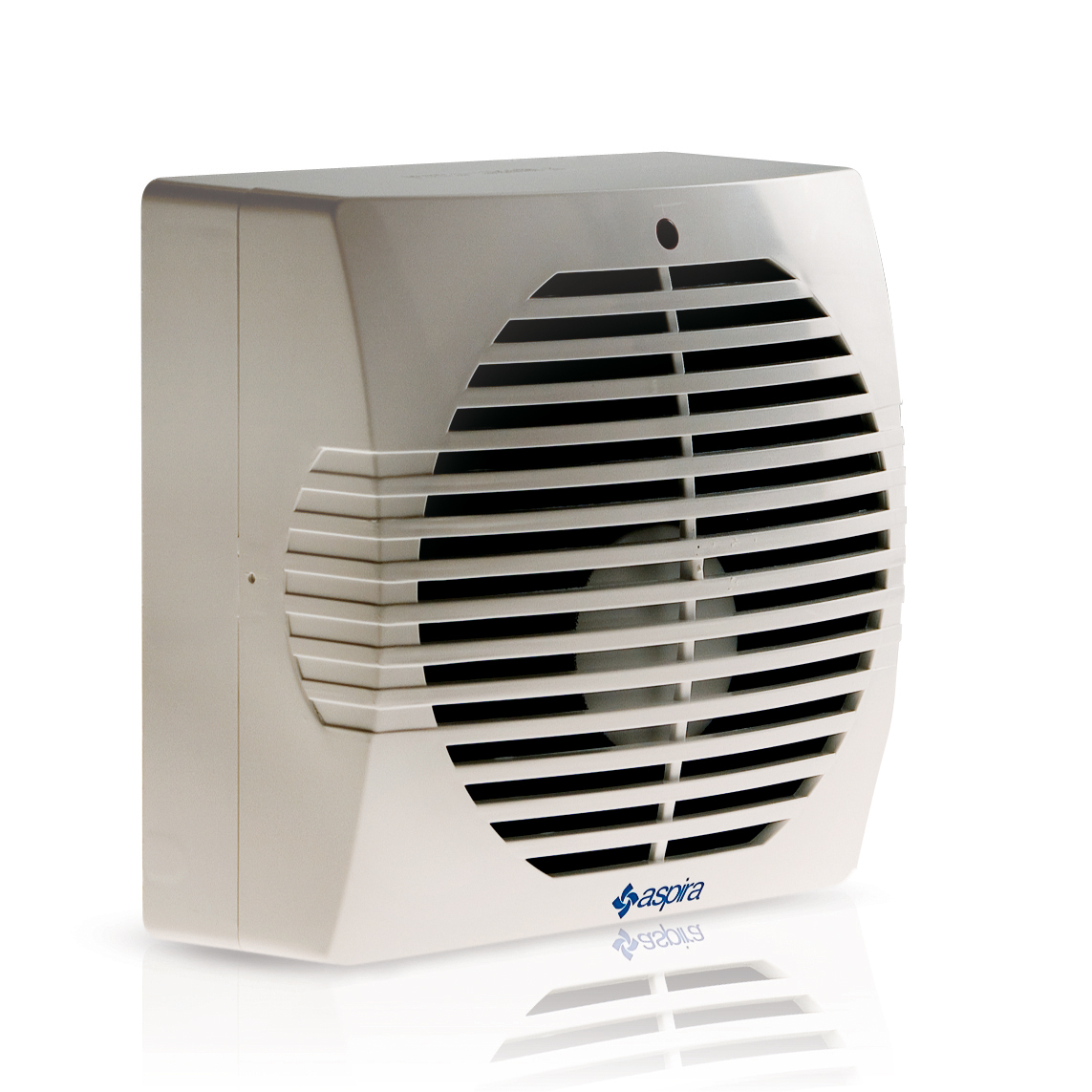

CTF

Centrifugal fans

•
•
•
•
•
•

CTF FOR MORE INFO

•
•
•
•
•
•

• DESCRIPTION
• TECHNICAL SPECIFICATION
• TECHNICAL LITERATURE

• DESCRIPTION
  0

  Centrifugal fans for duct application, for wall and window installation

  Available: standard, with timer, with pull cord or with hygrostat.

  Performances and the silent functioning mode, can easily satisfy ventilation needs of small, medium and large rooms

  General features

  • Practical front cover clip-on system.
  • Tear-proof power cable system.
  • Drain hole Ø100 mm.
  • Adapter ring for drain holes Ø120 mm, supplied.
  • Made of shockproof and heat resistant plastic (ABS).
  • Induction motor – Is Class B – 2100 RPM with self-lubricating bushings.
  • Motor protection through a thermal fuse.
  • Operation signal lamp.
  • Non-return butterfly shutter for preventing the smoke and odours returning in the environment.
  • Protective filter, supplied.
  • Vibration gasket, supplied.
• ADVANTAGES
  0

  Centrifugal fans for duct application, for wall and window installation

  Available: standard, with timer, with pull cord or with hygrostat.

  Performances and the silent functioning mode, can easily satisfy ventilation needs of small, medium and large rooms

  Advantages
• TECHNICAL SPECIFICATION

  CODE	MODEL	IMQ	m³/h	Pt max mmH2O	W	dB(A) 1.5m	Kg
  AP2006	CTF 100 S	•	110	15	18	48	2.08
  AP2113	CTF 170 S	•	170	19	48	53	2.36
  AP2162	CTF 250 S	•	240	24	70	57	2.52



  WITH PULL CORD

  CODE	MODEL	IMQ	m³/h	Pt max mmH2O	W	dB(A) 1.5m	Kg
  AP2014	CTF 100 PC	•	110	15	18	48	2.08
  AP2121	CTF 170 PC	–	170	19	48	53	2.36
  AP2170	CTF 250 PC	–	240	24	70	57	2.52



  WITH ELECTRONIC TIMER

  CODE	MODEL	IMQ	m³/h	Pt max mmH2O	W	dB(A) 1.5m	Kg
  AP2022	CTF 100 T	•	110	15	18	48	2.08
  AP2139	CTF 170 T	•	170	19	48	53	2.36
  AP2188	CTF 250 T	•	240	24	70	57	2.52



  WITH TIMER AND HUMIDITY CONTROL

  CODE	MODEL	IMQ	m³/h	Pt max mmH2O	W	dB(A) 1.5m	Kg
  AP2105	CTF 100 HTT	•	110	15	18	48	2.08
  AP2154	CTF 170 HTT	•	170	19	48	53	2.36
  AP2204	CTF 250 HTT	•	240	24	70	57	2.52



  ACCESSORIES:

  CODE	MODEL
  AP2220	6 FILTRI CTF	FILTER
• HOMOLOGATION AND INSTALLATION
  Homologation

  Installation and use
• TECHNICAL LITERATURE
  • CTF EN technical data sheet
  • CTF EN-FR-DE-NL-ES instructions
  • CTF series EU/1254/2014, Annex, IV Energy label
  • Conformity EU declaration
• FAQS
