Wireless 3-zone thermoregulation kit with WIFI connection
-
DESCRIPTION
General features0
Preset and ready to use kit, for 3 radiators control

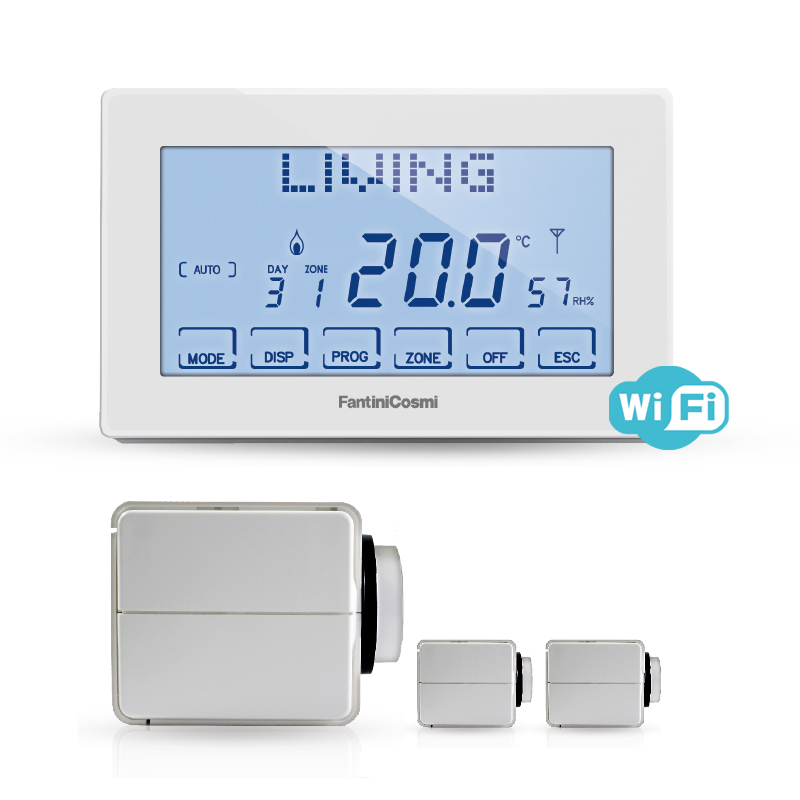

Kit composition: 1 weekly wireless programmable thermostat with WiFi connection ref. CH180RFWIFI +
3 wireless radiator actuators ref. O60RF3-zone temperature control
Remote control through APP Intelliclima+ for smartphone and tablet
- To control the heating systems;
- The already preset components are shared as follows:
– zone 1 = 1 CH180RFWIFI + 1 O60RF;
– zone 2 = 1 O60RF;
– zone 3 = 1 O60RF;
- Remote control through APP Intelliclima+ for Smartphone and Tablet;
- Expansion possibility for the cooling and dehumidifi cation control system;
- Expansion possibility up to 8 temperature zones.
Electric featuresCH180RFWIFI
- Power supply 230V-50Hz;
- Maximum absorbed power: 5 W;
- Contacts rating 5(3)A 250 Vca;
- Type of action 1 B.U. (connection micro-switch);
- Output type: 1 relay for heating/cooling or humidity systems (3 screw clamps (closed + open);
- Software A class;
- Electric insulation: double insulation;
- Pulse voltage 4000V.
O60RF
- Power supply 2 alkaline batteries (1.5V AA)
- Battery life up to 2 years under standard conditions of use
-
ADVANTAGES
0
Preset and ready to use kit, for 3 radiators control
Kit composition: 1 weekly wireless programmable thermostat with WiFi connection ref. CH180RFWIFI +
3 wireless radiator actuators ref. O60RF3-zone temperature control
Remote control through APP Intelliclima+ for smartphone and tablet
Advantages -
TECHNICAL SPECIFICATION
-
HOMOLOGATION AND INSTALLATION
Homologation
- Complies with EN 60730-1 standards;
- Responding to Directive 2014/53 / EU (RED).
- ErP Classification (Reg. EU 811/2013 – 813/2013): Classe VIII; 5%
Installation and useCH180RFWIFI
- CH180RFWIFI has to be installed on the wall or in a 3 modules or round flush mounting box, at about 1.5 meters above the floor.
O60RF
- The wireless actuator can be quickly and easily mounted on all common valves with 30 x 1.5 thread.
- Scope of delivery: 1 O60RF actuator, 1 coupling ring, 1 adapters set with four parts, 1 screw and nut, 1 removing tool and this installation manual.
- CH180RFWIFI pre-set programmable thermostat performs the supervisor functions, managing 3 zones and communicating with the O60RF wireless actuators for radiator
- The already preset components are shared as follows:
– zone 1 = 1 CH180RFWIFI + 1 O60RF
– zone 2 = 1 O60RF
– zone 3 = 1 O60RF - CH180RFWIFI “MASTER” programmable thermostat directly controls the O60RF radiator actuators.
These actuators receive the current set-point from the programmable thermostat and adjust the temperature in 2 different ways:
– O60RF actuator coupled with the CH180RFWIFI (zone 1) execute the regulation according to the temperature detected by the programmable thermostat;
– O60RF actuator coupled to a zone without thermostat (zone 2 and 3) execute the regulation according to the temperature detected by its internal sensor. - CH180RFWIFI uses a program that allows you to set the temperature and time profiles for each zone.
It is also possible to correct the offset of the read temperature from each zone (i.e if the zone is controlled by O60RF head placed in the wrong position). - On the white positive backlight, LCD touch screen is possible view, through an intuitive graph, the energy consumption of the entire system.CH180RFWIFI has 6 touch-keys, which function depends on the situation and is described by the symbol that appears on the display.
- CH180RFWIFI programmable thermostat allows different modes of use, called programs:
– MAN Manual program
– AUTO Weekly program
– HOLIDAY Daily program
– JOLLY Temporary program
– OFF Switched off system or antifreeze program
