C37

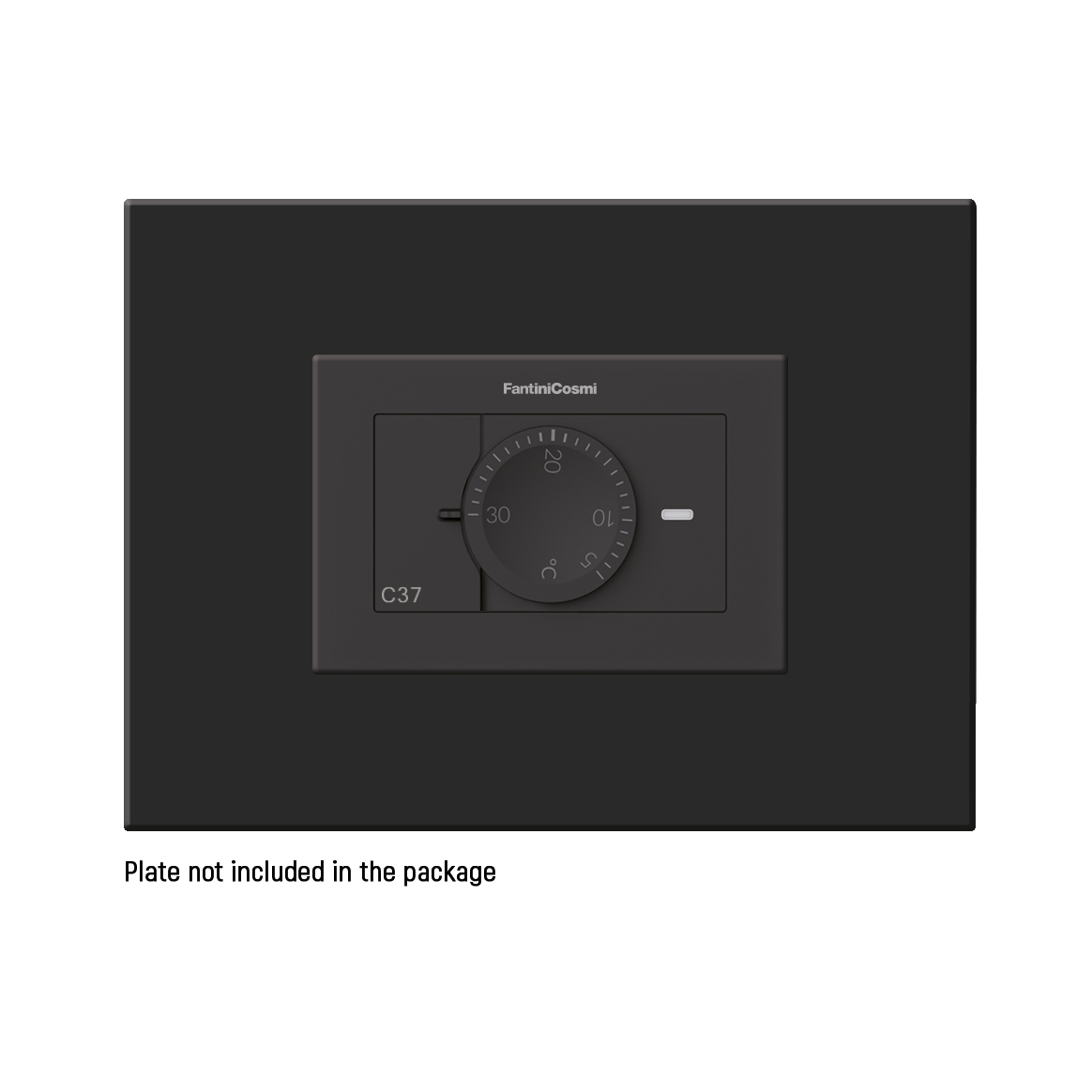

Flush-mounting room thermostats, 1 temperature, 230V 50Hz

•
•

C37 FOR MORE INFO

•
•
•
•

• DESCRIPTION
• TECHNICAL SPECIFICATION
• HOMOLOGATION AND INSTALLATION
• TECHNICAL LITERATURE

• DESCRIPTION
  0

  Flush-mounting electronic room thermostat suitable to regulate the temperature in heating installations

  Suitable for all plates thanks to a kit

  General features

  • 1 adjustable temperature.
  • Suitable for all plates thanks to a kit including:

  – 1 anthracite COVER “A” for C37 + 1 white COVER “A” C37B

  – 1 anthracite COVER “B” anthracite for C37 + 1 white COVER “B” for C37B

  – 1 anthracite PAIR OF ADAPTERS for C37 – 1 white PAIR OF ADAPTERS for C37B

  – 4 FRAMES to provide compatibility with the most common plates

  • Software A class.
  • Double isolation.
  • Led to check the batteries charge.
  • Adjustment knob of big diameter and large-scale.
  • Unit weight 0,20 Kg.

  Electric features

  • Power supply for 230V 50Hz C37-C37B.
  • Micro disconnection (1BU).
  • Voltage-free switching contact.
• ADVANTAGES
  0

  Flush-mounting electronic room thermostat suitable to regulate the temperature in heating installations

  Suitable for all plates thanks to a kit

  Advantages
• TECHNICAL SPECIFICATION

  CODE	COLOR	TEMPERATURE RANGE	DIFFERENTIAL *	POWER SUPPLY	CONTACT RATING
  C37	Anthracite	5 ÷ 30 °C	0.5 K	230V-50Hz	5(3)A-250Vac

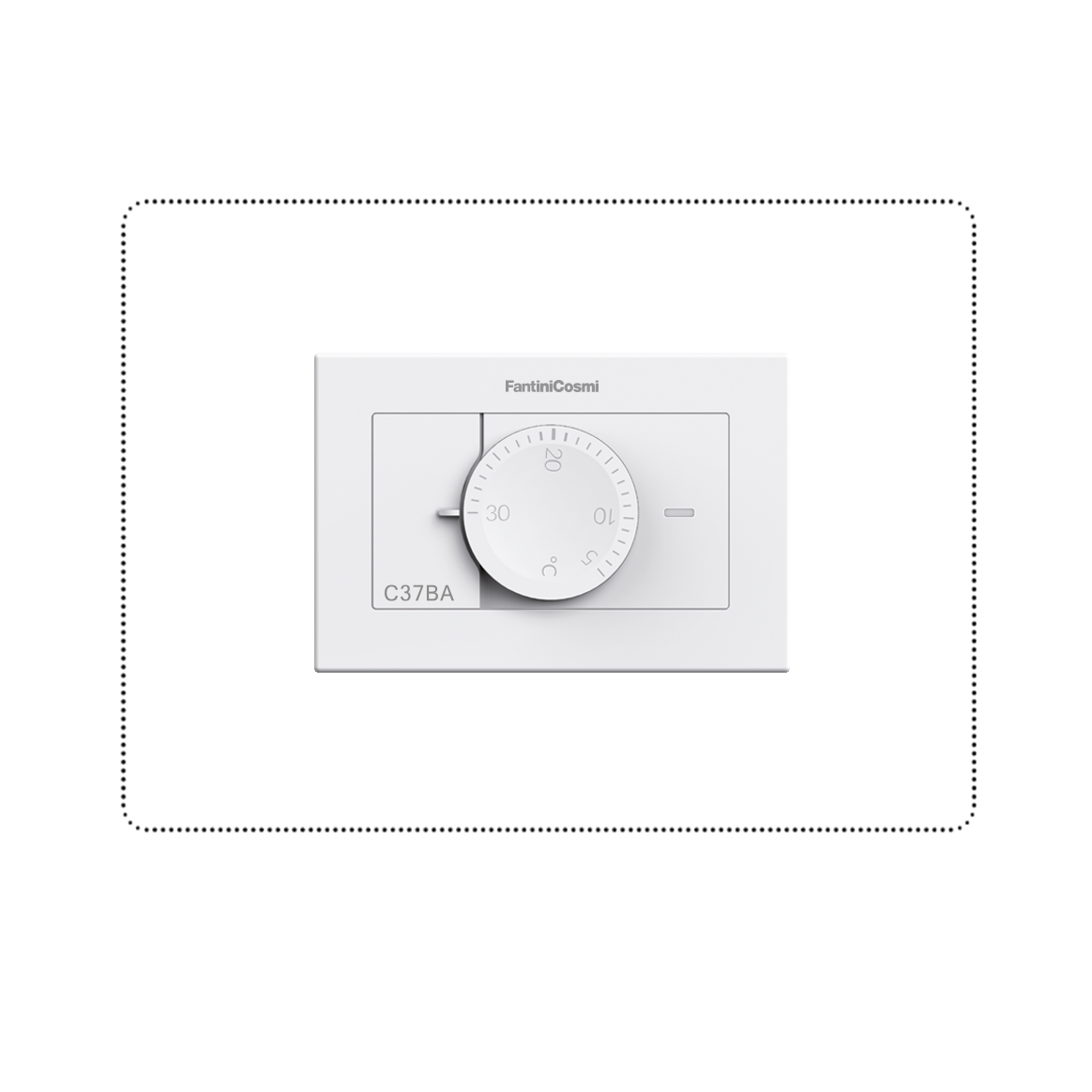

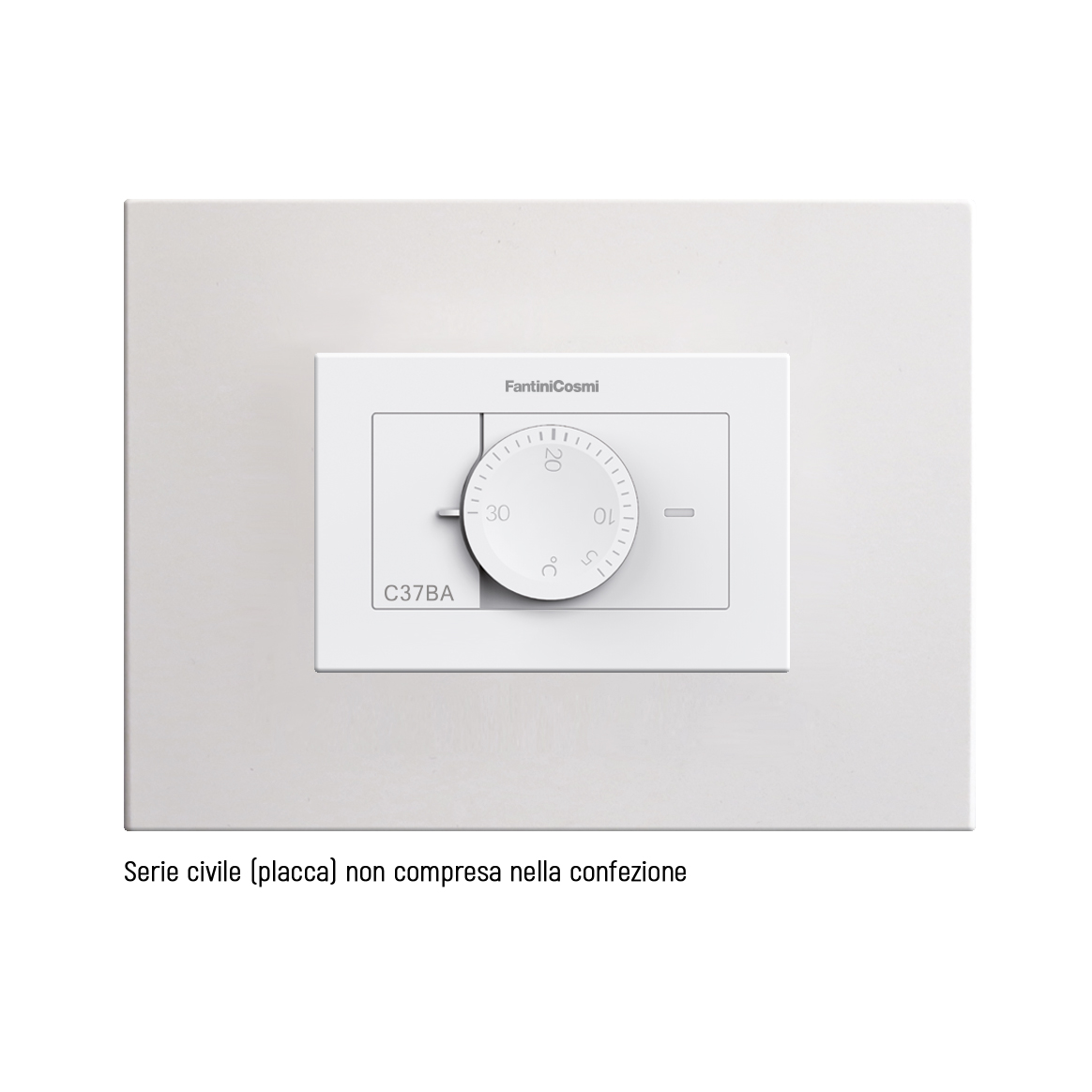

  C37B	White	5 ÷ 30 °C	0,5 K	230V-50Hz	5(3)A-250Vac
  			* Differential values are referred to a thermal gradient of 4K/h

• HOMOLOGATION AND INSTALLATION
  Homologation

  • Complies with CEI EN 60730-1 standards.
  • ErP: ErP Class I; 1% (Reg. EU 811/2013 -813/2013)

  Installation and use

  • Flush-mounting in 3-module 503 embedded boxes by means of 2 screws (supplied).
  • Two-wire connection with the user.
  • Install the thermostat at 1,5 meters above the floor, away from kitchens, heat sources, windows and doors.



  • COMPATIBLE PLATES
  • BTICINO Axolute, Axolute Air, Livinglight Air, Livinglight, Light, Light tech, Matix, Living, Living Now (with optional adapters 1571050/1571051)
    VIMAR Arké, Eikon Evo, Idea, Rondò, Plana, Eikon
  • GEWISS Chorus One, Lux, Art – AVE Sistema 45, Sistema 44
  • LEGRAND, Vela
  • ABB Elos, Mylos.

  • When the temperature increases: 1-2 opens.
• TECHNICAL LITERATURE
  • C37 EN technical data sheet
