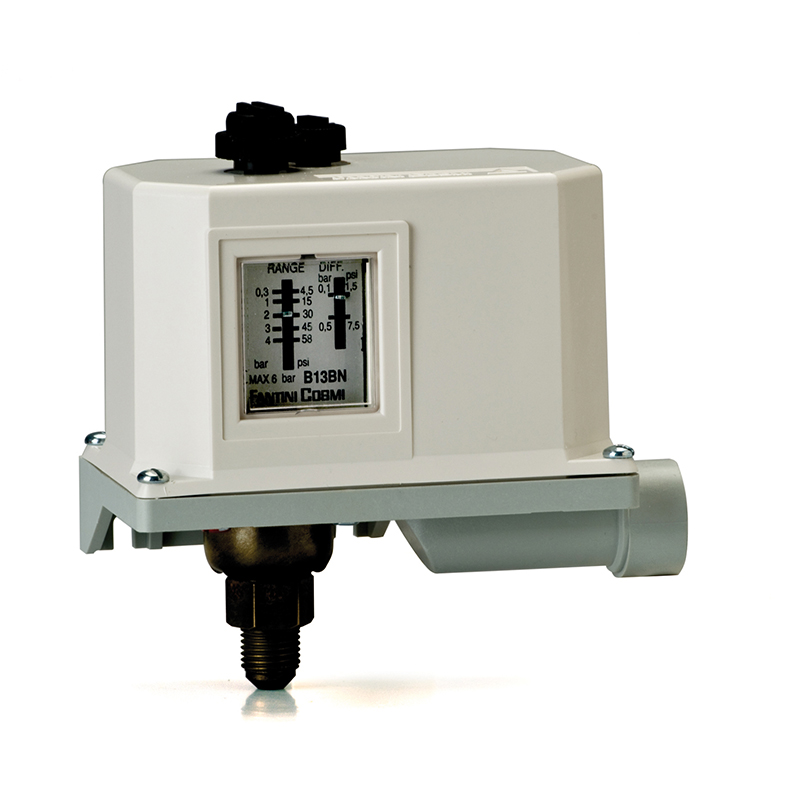

Pressure switches up to 10 bar with low adjustable differential
-
DESCRIPTION
General features0
Pressostats with low differential for control and regulation of air compressors, autoclaves, water insulation and tanks in general, where a minimum difference between ON and OFF is required.
- Adjustable differential.
- Metallic bellows sensing element, not suitable for corrosive liquids that affect copper alloys.
- Metallic frame.
- Cover in shockproof thermoplastic material.
- Output connections with PVC cable gland.
- Maximum temperature of the controlled fluid: 100°C.
- Pressure switch body admissible temperature: -35÷60°C.
- Storage and transport temperature: -35÷60°C.
- Unit weight 0.38 Kg B13BN.
- Unit weight 0.39 Kg B13CN.
ACCESSORIES
- G1/2 cable gland in V0 self-extinguishing, shockproof thermoplastic material, code: 303298LA
- IP44 protection casing IP44, code: 2593367
Electric features- Rated insulation voltage Ui 415V~
- Continuous duty rated current Ith 16A
-
ADVANTAGES
0
Pressostats with low differential for control and regulation of air compressors, autoclaves, water insulation and tanks in general, where a minimum difference between ON and OFF is required.
Advantages -
TECHNICAL SPECIFICATION
CODE RESET RANGE DIFFERENTIAL CONNECTION G 1/4
PROTECTION
DEGREEB13BN 0.3 ÷ 4 bar 0.1 ÷ 0.5 bar 6 bar male IP40 B13CN 1 ÷ 10 bar 0.3 ÷ 1.5 bar 16 bar male IP40 B13BNY 0.3 ÷ 4 bar 0.1 ÷ 0.5 bar 6 bar male IP65 B13CNY 1 ÷ 10 bar 0.3 ÷ 1.5 bar 16 bar male IP65 1 Bar = 100Kpa The differential must be deducted from the range value -
HOMOLOGATION AND INSTALLATION
Homologation
- Complies with CE 0497 Directives.
- Complies with EN 60947-1 and EN 60947-5-1 standards.
Installation and use- Direct installation on the pipe.
- Pressure element connection G 1/4.
- When pressure increases: 1-2 opens, 1-4 closes.
