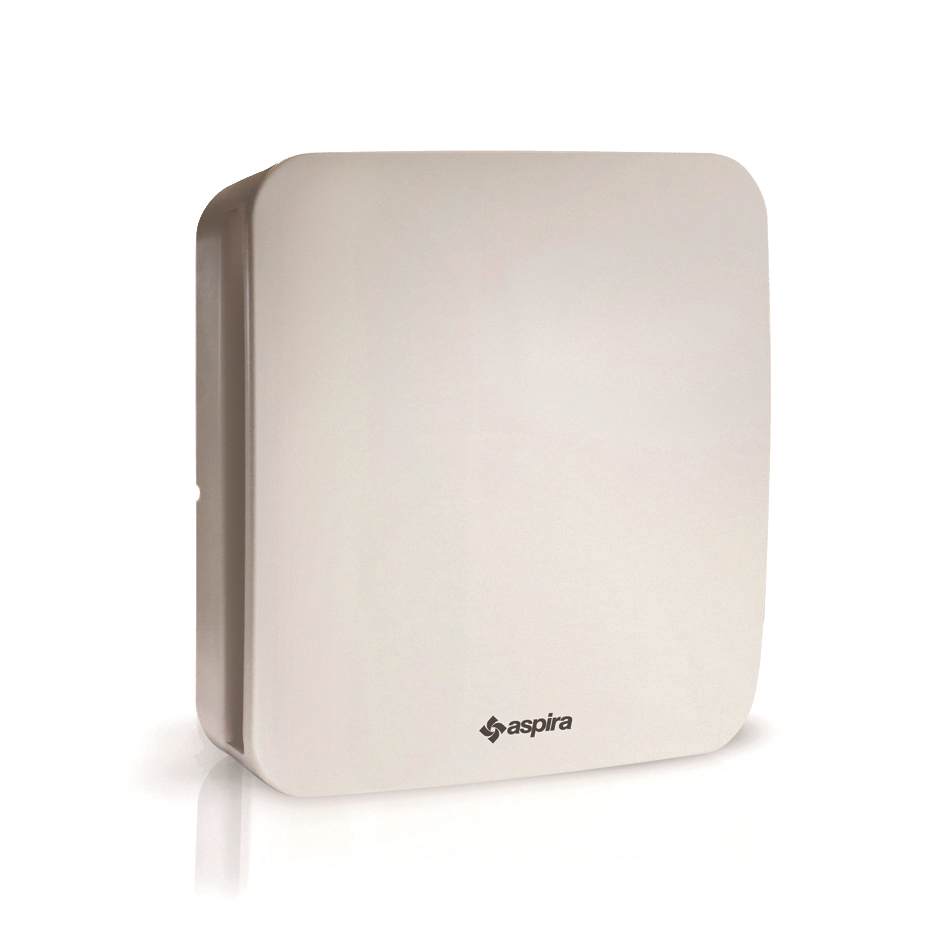

ASPIRVELO AIR

Axial fans with side air extraction

•
•
•
•
•
•

ASPIRVELO AIR FOR MORE INFO

•
•
•
•
•

• DESCRIPTION
• TECHNICAL SPECIFICATION
• TECHNICAL LITERATURE

• DESCRIPTION
  0

  For intermittent or continuous ventilation of bathrooms, kitchens or utility rooms of both domestic and commercial premises.

  Reduced noise levels thanks to the front grille and side air extraction.

  The short mounting depth makes it ideal for installation close to pipe bends.

  General features

  • Suitable to extract the air directly outside or into short ducts
  • Short mounting depth
  • Suitable for wall, ceiling and window installation
  • Decorative front grille with side air extraction
  • Made of shockproof and anti-UV ABS plastic.
  • Induction motor with thermal cut out – insulation class F
  • Maximum ambient temperature 45 °C
  • Timer version: overrun timer settable from 45 sec. to 20 minutes
  • HT version: Humidity sensor settable between 40% and 80% rh.



  ACCESSORIES:

  • Window Kit
  • Timer to be fit on standard models
  • Gravity shutter
  • Fixed grille
• ADVANTAGES
  0

  For intermittent or continuous ventilation of bathrooms, kitchens or utility rooms of both domestic and commercial premises.

  Reduced noise levels thanks to the front grille and side air extraction.

  The short mounting depth makes it ideal for installation close to pipe bends.

  Advantages
• TECHNICAL SPECIFICATION

  CODE	MODEL	m³/h	mmH2O	W	dB(A) 1.5m	Kg
  AP3060	ASPIRVELO AIR 10/4”	82	3.3	19	38.2	0.66
  AP3062	ASPIRVELO AIR 12/5”	165	3.9	26	44.8	0.74
  AP3064	ASPIRVELO AIR 15/6”	185	2	32	42	0.9



  WITH ELECTRONIC TIMER

  CODE	MODEL	m³/h	mmH2O	W	dB(A) 1.5m	Kg
  AP3070	ASPIRVELO AIR 10/4” T	82	3.3	19	38.2	0.66
  AP3072	ASPIRVELO AIR 12/5” T	165	3.9	26	44.8	0.74
  AP3074	ASPIRVELO AIR 15/6” T	185	2	32	42	0.9



  WITH AUTOMATIC HUMIDITY CONTROL

  CODE	MODEL	m³/h	mmH2O	W	dB(A) 1.5m	Kg
  AP3080	ASPIRVELO AIR 10/4” HT	82	3.3	19	38.2	0.66
  AP3082	ASPIRVELO AIR 12/5” HT	165	3.9	26	44.8	0.74
  AP3084	ASPIRVELO AIR 15/6” HT	185	2	32	42	0.9



  ACCESSORIES

  CODE	MODEL

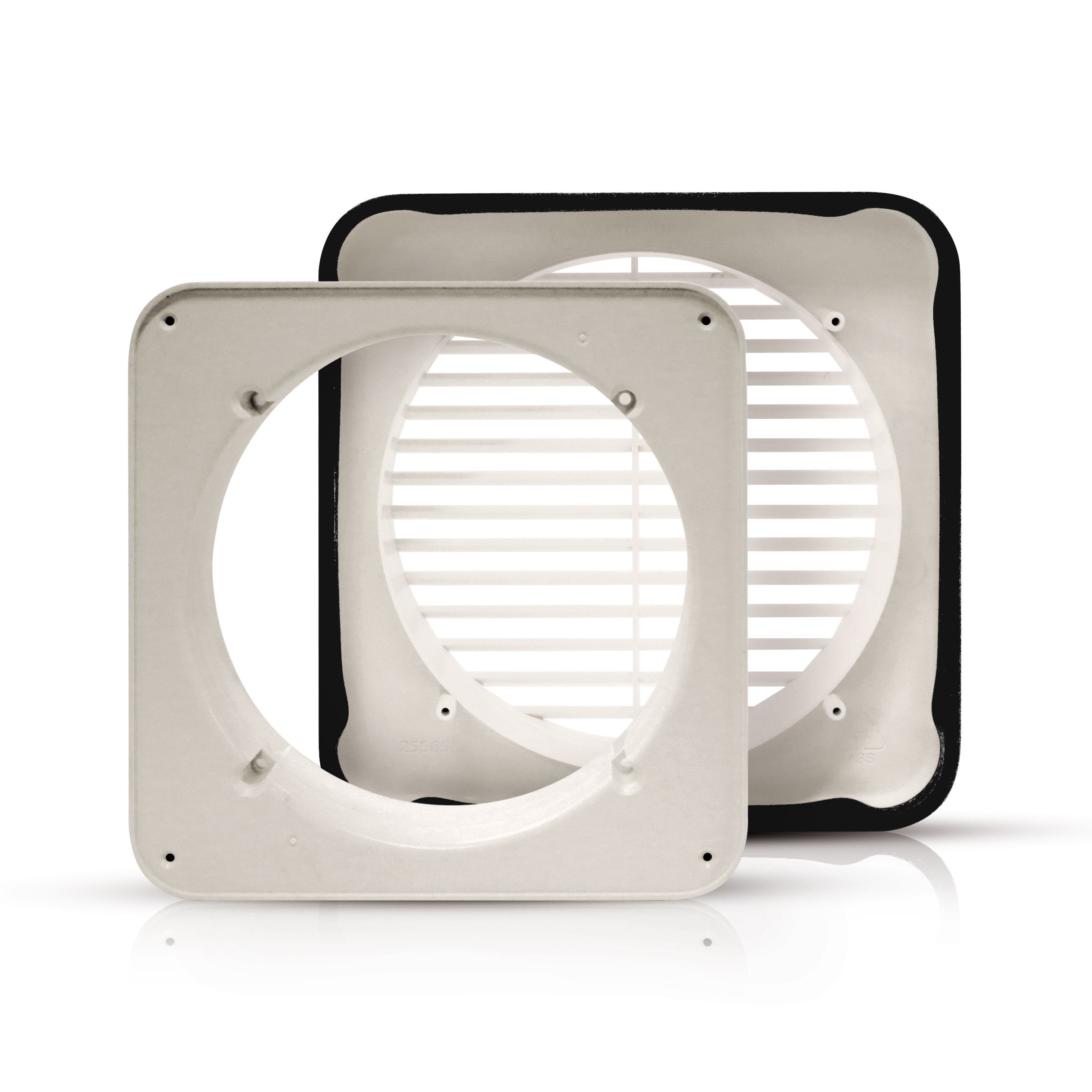

  AP0900	ASPIRKIT VETRO N	Window application kit



  CODE	MODEL
  AP0904	ASPIRTIMER N	Timer



  CODE	MODEL
  AP0906	ASPIRHYGRO TIMER	Timer with hygrostat



  CODE	MODEL
  AP2568	ASPIRCONTROL RDV 1.5-MF
• HOMOLOGATION AND INSTALLATION
  Homologation

  Installation and use
